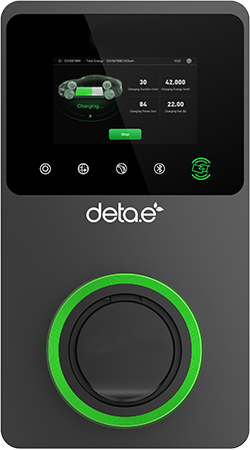

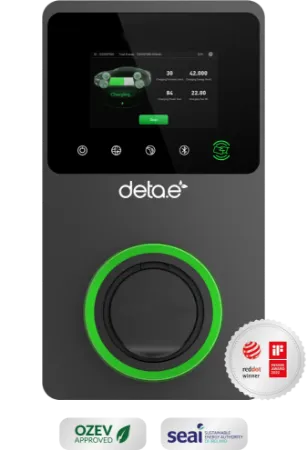

Deta.e. Communal Charge Point

Charging for Communal, Residential & Commercial Parking

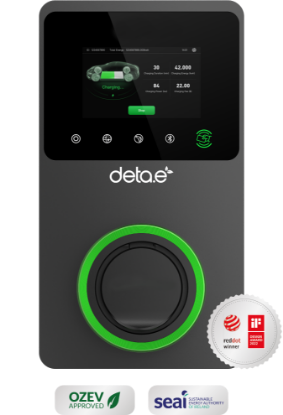

The award winning eVoomXT is a multi-user smart charge point designed for communal residential and commercial EV charging (workplace, retail parks).

Designed with an integrated touchscreen, its modular design simplifies installation and maintenance. A cooling functionality means that at full power, the temperature is 10°c lower than the industry average, extending its life by more than eight years.

Incorporating triple protection technology for safe charging and available to suit single phase (7.4KW) or three phase (11KW/22KW) options, users can access the smart charge point via the app (free to download) or RFID card. Optional cloud based software allows communal parking areas to be managed by a Charge Point Operator (CPO), who is then in control of operating and maintaining the EV charging facility and billing the users.

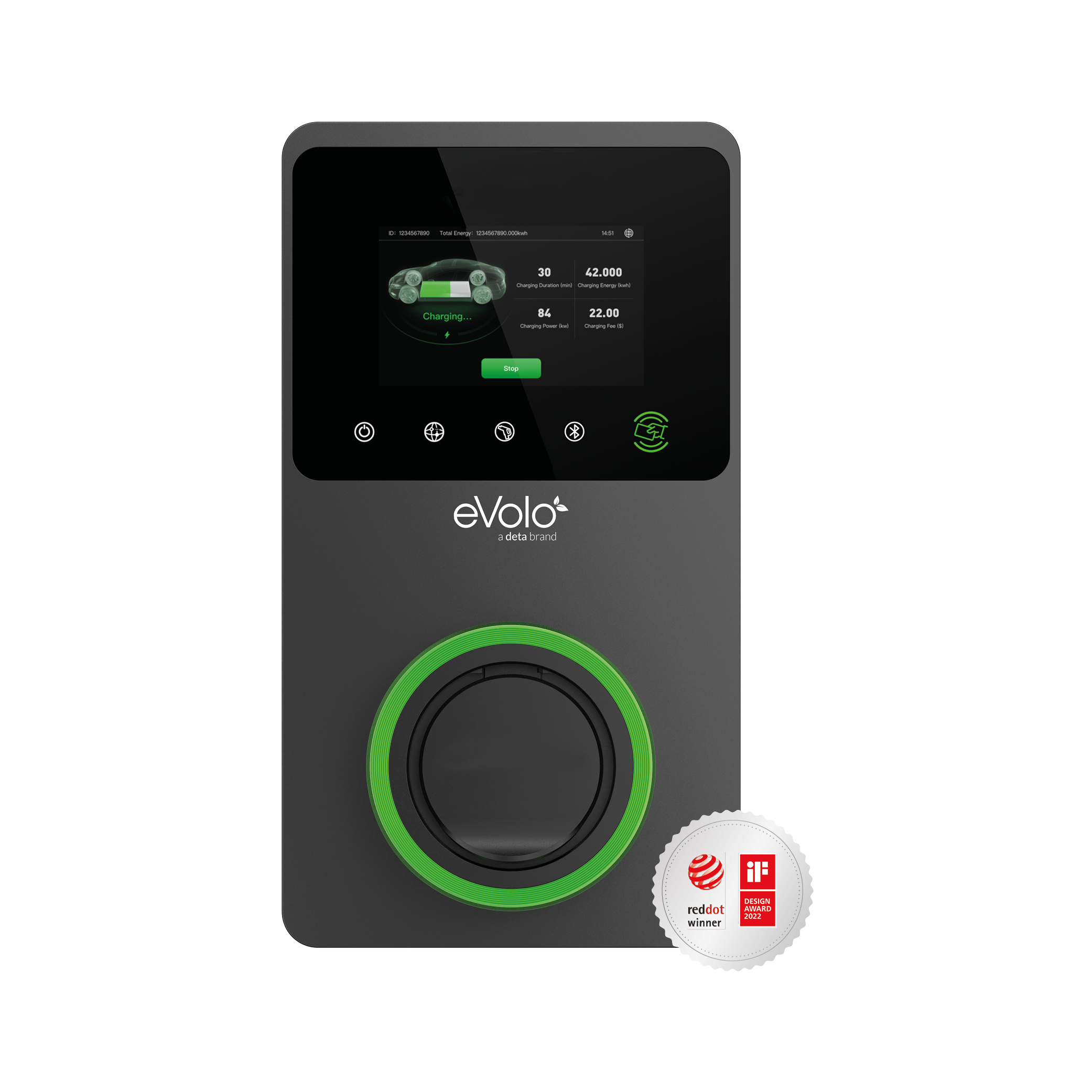

The eVoomXT is a winner of both the Red Dot Design Award (2022) and iF Design Award (2022).

View Brochure

Smart

Software updates available via Wi-Fi

Powerful

Supporting up to 7.4KW 32A on single phase or 22KW 32A on three phase and has an untethered Type 2 connector

Reliable

Supported by a customer warranty

PV Solar

Compatible with PV Solar Generation and battery storage systems

Versatile

Suitable for inside or outside mounting

Innovative Technology for Long Live, Phase Balancing and Cloud Based Management

Cloud-based software allows communal parking areas to be managed by a Charge Point Operator (CPO), who is then in control of operating and maintaining the EV charging facility and billing the users.

Flexible and compact, Deta.e charge points can be mounted directly onto a wall or on a post in remote car parking spaces.

Operated via the app or RFID card, it is easy to switch the charge point on and off and restrict access to approved users only.

View as Grid List

Sort by

Display per page

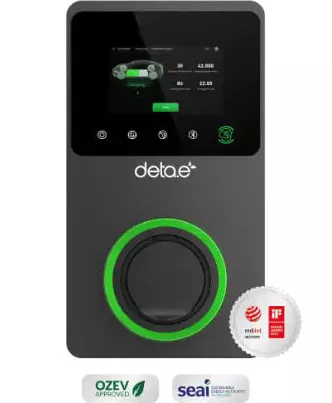

eVoomXL

EVC7006
7.4kW Single Phase/11kW/22kW Three Phase
Integrated 30mA AC & 6mA DC Earth Fault Protection
Built in Open PEN Fault Protection RFID Enabled (Supplied With 2 Cards)
LCD Screen Allows Operation via the Screen
Customisation of LCD Screen Display for Images/Adverts
4G, Wi-Fi, Ethernet and Bluetooth Connectivity
Over-the-Air Firmware Updates
Scheduled & Energy Tariff Charging Options
Safe Electrical Load Management
OCPP 1.6J Compliant for Remote Management & Control
3-Year Warranty

Product Specifications Data Sheet

Attribute name	Attribute value
Product Information
Model	eVoomXL
Product Number	7006
Connection Capacity	Single Phase, 7.4kW & Three Phase, 22KW AC
Charging Connector	Un-tethered, IEC 62196/Type 2
Charging Protocol	Mode 3 (EN/IEC61851)
Communication
Status Indication / HMI	Touch Screen & Multi-colour LEDs
Standard	WiFi 802.11b/g/n @ 2.4GHz; Ethernet, Bluetooth; RS485
Physical Properties
Dimensions (H xWx D)	335mm x 187mm x 85mm
Mounting Type	Pole/ Wall Mounted
Colour	Grey
Unit Material	PC
Environmental Properties
Operating Temperature	-40 to 55 degrees Celcius
Operating Humidity	Up to 95% RH, non-condensing
IP Rating	IP54, IK10
Standards & Compliance
EMC Compliance	EN610000-6-3:2006, EN61000-6-2:2019
Safety Compliance	EN 60950-1:2006 + A11 + A1, EN60950-22:2006, BS7671:2018 + A2:2022
EV Charging Compliance	EN61851-1:2019, EN61851-21:2002, EN61851-22:2002, IEC62196-1
Electrical Properties
AC Charging Output	7.4kW, 32A@230V AC
Input Voltage	230 AC & 400V AC Nominal, 50Hz
Input Current (max)	32A
Energy Monitoring	Power and energy monitoring as standard via APP & LCD Display
Overcurrent Protection	Internal overcurrent protection
Installation
PEN Fault Protection	Built-in open PEN protection (detection + isolation), Deta EV Home can safely be installed without an earth-rod
RCD Protection	Integrated 30mA AC and 6mA DC RCD
Service Fuse Protection	Automated load management via wired CT & MID meter (available separately)
MID Meter	Inbuilt +/-1%

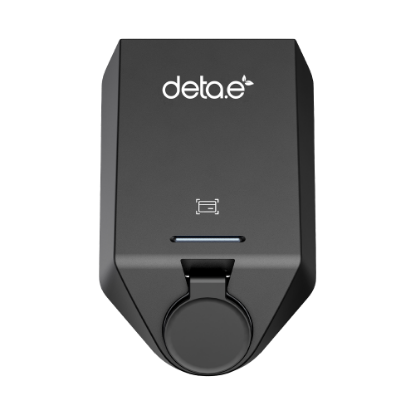

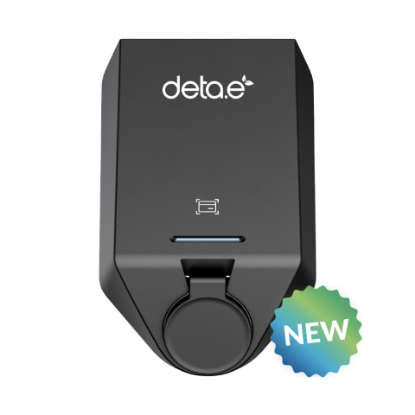

eDock2 - Commercial

EVC8007
7.4kW
Integrated 30mA AC & 6mA DC Earth Fault Protection
Compatible with Solar & Battery Storage
Wi-Fi, Ethernet, Bluetooth, RS485 & 4G
Clenergy EV SIM supplied, including 12 months connection
Dynamic Load Management (CT included)
OCPP 1.6J & OCPP 2.0.1 Compliant for Remote Management & Control
Cyber Security/Anti-Tamper Proof
Cable Lock Function (via App)
IP65 with Plug Fitted, IP55 with no Plug Fitted
IK10 Impact Rating
2-Year Warranty Extendable to 3-years Free of Charge on Registration

Product Specifications Data Sheet

Attribute name	Attribute value
Product Information
Model	eDock2
Product Number	EVC8007
Connection Capacity	Single Phase, 7.4kW AC
Charging Connector	Un-tethered, IEC 62196/Type 2
Charging Protocol	Mode 3 (EN/IEC61851)
Communication
Status Indication / HMI	Multi-colour LED's on front cover
Standard	WiFi 802.11b/g/n/a/ac/ax @ 2.4GHz & 5.0 GHz; Ethernet, Bluetooth; RS485
Physical Properties
Dimensions (H xWx D)	283mm x 191mm x 156mm
Mounting Type	Wall or Post Mounted
Colour	Black
Unit Material	Polycarbonate
Environmental Properties
Operating Temperature	-40 to 55 degrees Celcius
Operating Humidity	Up to 95% RH, non-condensing
IP Rating	IP65 socket, IP55 with plug inserted, IK10
Standards & Compliance
EMC Compliance	EN610000-6-3:2006, EN61000-6-2:2019
Safety Compliance	EN 60950-1:2006 + A11 + A1, EN60950-22:2006, BS7671:2018 + A2:2022
EV Charging Compliance	EN61851-1:2019, EN61851-21:2002, EN61851-22:2002, IEC62196-1
Electrical Properties
AC Charging Output	7.4kW, 32A@230V AC
Input Frequency	50 Hz
Input Current (max)	32 A
Energy Monitoring	Power and energy monitoring as standard via APP
Overcurrent Protection	Internal overcurrent protection
Installation
PEN Fault Protection	Built-in open PEN protection (detection + isolation). Deta EVSE can safely be installed without an earth-rod
Service Fuse Protection	Dynamic load management via CT/APP
